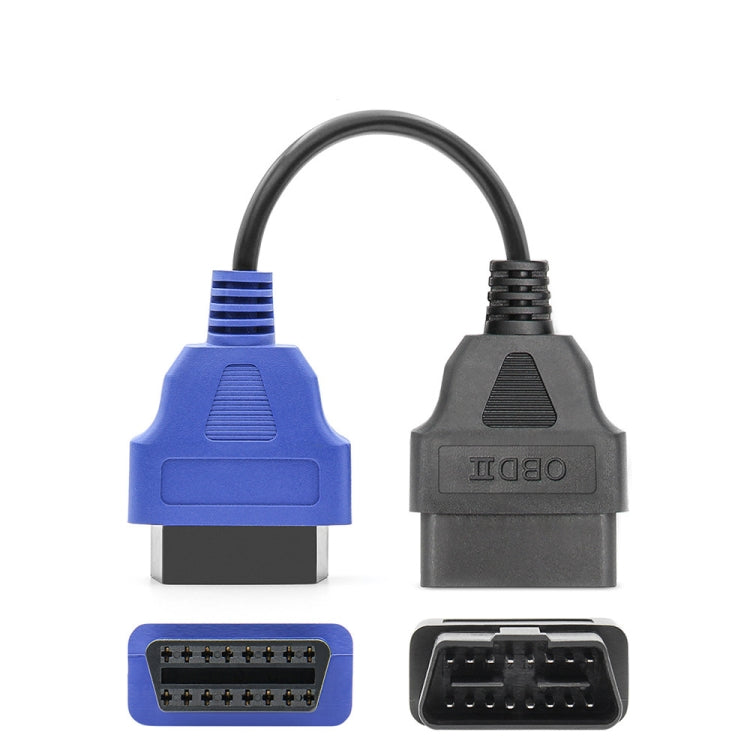

6-color OBD ECU Scan Adapter Cable Bundle for Fiat, 6-color

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	Visualizza tutti i dettagli

$18.36 USD

Choose option

Fast delivery

$1.00 coupon code if delayed · Refund if package lost · Refund if items damaged · Refund if no delivery in 30 days

Security & Privacy

We protect your privacy and keep your personal details safe and secure.

1. Cable length: 22cm
2. Note: There are only used as a connecte cable and does not contain any software or diagnostic cables

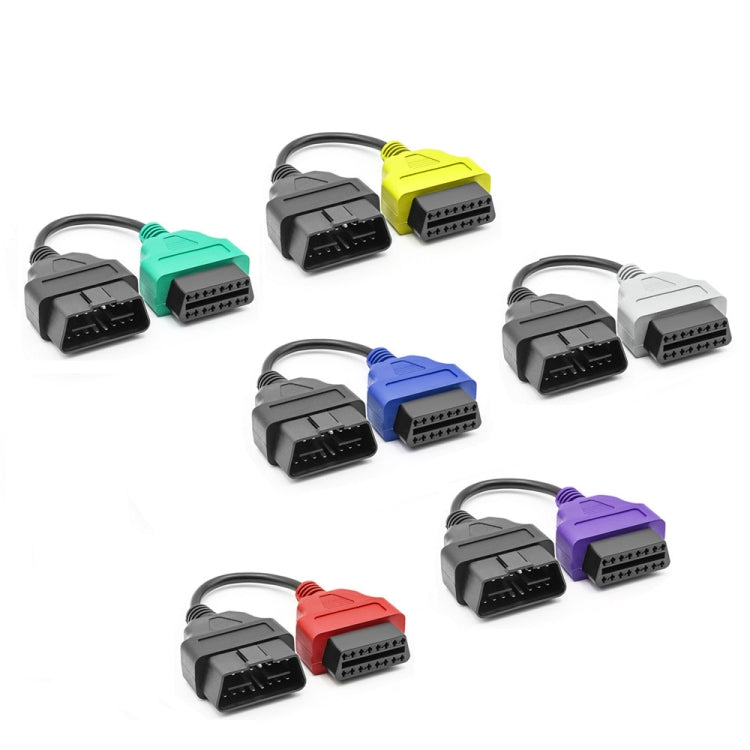

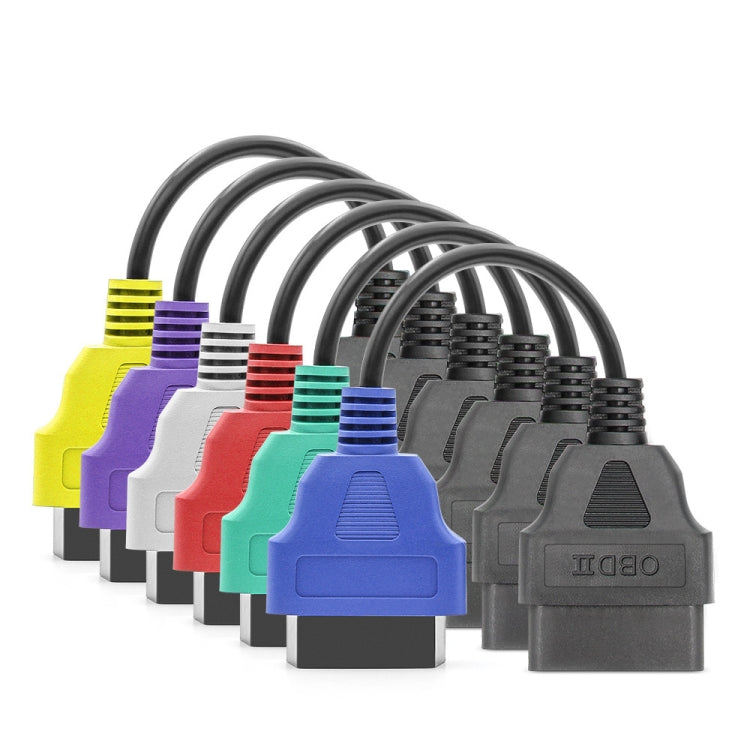

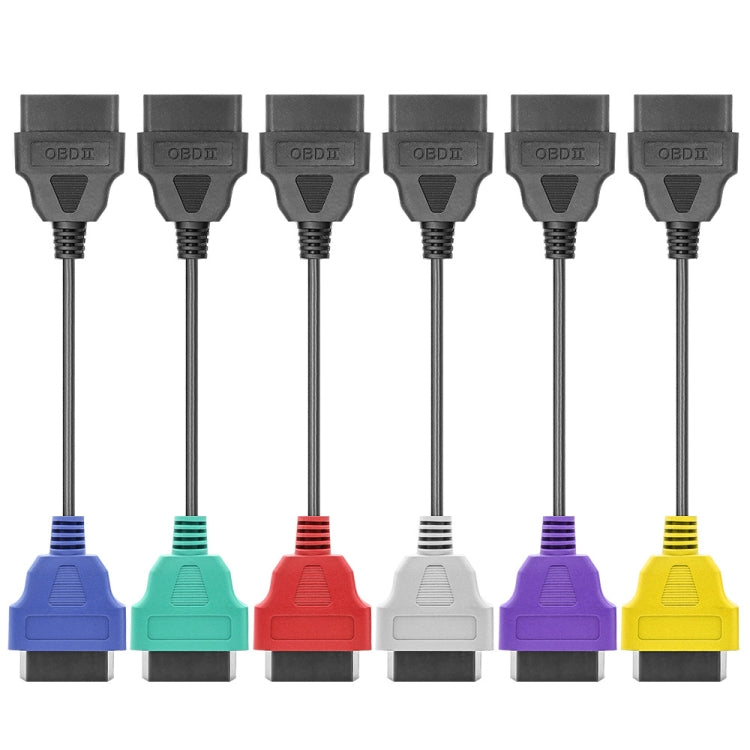

3. There are 6 adaptor cables included which perform different functions.
4. Green ABS / Power Sreeing adapter lead (Adapter 1 on MultiECUScan website)
Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.
5. Red Airbag adapter lead ( Adapter 2 on MultiECUScan website)
Designed to allow access to the Airbag system on supported vehicles.
This adapter has a red connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.
6. Yellow CAN adapter lead ( Adapter 3 on MultiECUScan website)
Designed to allow access to the low-speed CAN system on supported vehicles.
This adapter has a yellow connector on one end for easy identification.
Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9
Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.

Specification:

General

Compatible with

Fiat: Doblo, Fiorino, Ducato, Palio, Siena, 124 Spider, 500X, 500L, 500, Strada

Package Weight

One Package Weight

0.61kgs / 1.34lb

One Package Size

20cm * 15cm * 4cm / 7.87inch * 5.91inch * 1.57inch

Qty per Carton

Carton Weight

25.70kgs / 56.66lb

Carton Size

42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch

Loading Container

20GP: 522 cartons * 40 pcs = 20880 pcs
40HQ: 1212 cartons * 40 pcs = 48480 pcs
