SriHome NVS008 - AHD030 2MP HD 4 - CH XVR NVR Camera Network Video Recorder Kit - Trustpick

SriHome

SriHome NVS008-AHD030 2MP HD 4-CH XVR NVR Camera Network Video Recorder Kit, NVS008-AHD030 2MP

€79,95 EUR

Features:
1. Support TVI/AHD/DVR/NVR/CVI five-in-one function, multi-mode input
2. Support 5MN FHD analog video input
3. Support SriHome cloud platform, support remote monitoring&playback
4. Support coaxial audio monitoring, APP supports two-way voice intercom
5. Support infrared dual light, full-color night vision (alarm trigger)
6. Support 16TB hard disk, 4Ch synchronous playback and multiple playback
7. Support H.264/H.265 encoding front-end adaptive access

XVR
1. Model: NVS008 (4 channels 5MN)
2. Operating System: Embedded Linux
3. Main control chip: MC6630
4. Language: Japanese, French, Russian, Portuguese, Italian, Spanish, German, Polish, English, Simplified Chinese, Traditional Chinese
5. Video Input: 4CH
6. Resolution: Support 1280 x 720, 1920 x 1080, 1280 x 1440, 1280 x 1920
7. Audio output: 1ch HDMI, 1ch VGA
8. Decoding format: H265+/H264
9. Input Channels: Maximum support 5MN
10. Coaxial bidirectional: Support two-way Audio
11. Decoding format: Support G.711/ADPCM
12. HDMI interface: Support HDMI audio output
13. Coaxial Audio: 4ch
14. Hard disk interface: 1 SATA interface(donot support e-sata)
15. Hard drive capacity: Maximum support 16TB (not included)
16. Video recording: Manual recording, timed recording, motion detection
17. Playback Mode: Support 4CH simultaneous playback
18. Backup Mode: Support USB mobile hard disk, U disk
19. Network port: 10/100 Mbps Ethernet (RJ-45)
20. Network Protocol: TCP/IP, HDCP, DDNS, NTP, UDP, SMTP
21. Alarm mode: Motion detection alarm, human detection alarm
22. Alarm reminder: Humanoid mark, screen prompt, APP push
23. Network Interface: 1x RJ45 Network Interface
24. USB Interface: 2xUSB2.0
25. HD-MI Interface: 1
26. VGA Interface: 1
27. Power Interface: 1 x DC 12V 2A (5.5 x 2.1 x 10 )
28. Working temperature: -10 degree C ~ 50degree C
29. Working humidity: 10%~90% RH
30. APP: Support SriHome APP, iOS and Android remote access

XVR Camera
1. Model: AH030 (1080P)
2. Main processor: ARM11
3. Sensor: 1/4 inch, 2MP high definition color CMOS sensor
4. Signal output: Support AHD 1080p 25 / CVI 1080p 30
5. Lens Focal Length: 4mm, 2MP
6. Field of view: Horizontal: 350 degrees, Vertical: 90 degrees, Diagonal: 98 degrees
7. Video Output: Support AHD 1080P 25fps / CVI 1080P 30fps
8. Automatic exposure: Automatic exposure and white balance
9. Night Vision: High power infrared light, high definition night vision
10. Mini illumination 0.01 Lux / F2.0
11. IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision
12. Electronic Zoom: 3x Electronic magnification
13. Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on.
14. Audio: Support two-way audio, built-in microphone and speaker
15. PTZ Angle: Horizontal: 350 degrees, vertical: 90 degrees
16. Product Type: Plastic PTZ camera, for indoor and outdoor use
17. Waterproof grade: IP66
18. Power adapter Input AC: 100~240V
19. Working temperature: -10 degree C ~50 degree C
20. Working humidity: 10%~90% RH
21. Product weight: 0.36g
22. Product size: 140 x 120 x 87 mm (length x width x height)

Package List
1. XVR: 1 x XVR NVS008
2. Camera: 4 x AHD030
3. Power Adapter: 1 x 12V 2A
4. Screw Pack: 5 Packs
5. Manual: 1
6. 1 to 5 power cord: 1
7. Net Cable: 1
8. Coaxial Cable: 4 x 20m

Specification:

Package Weight

One Package Weight

3.30kgs / 7.28lb

One Package Size

30cm * 24cm * 27cm / 11.81inch * 9.45inch * 10.63inch

Qty per Carton

4

Carton Weight

15.50kgs / 34.17lb

Carton Size

50cm * 32cm * 54cm / 19.69inch * 12.6inch * 21.26inch

Loading Container

20GP: 308 cartons * 4 pcs = 1232 pcs
40HQ: 716 cartons * 4 pcs = 2864 pcs

Disponibile

Receives in 7 days.

SriHome NVS008 - AHD006 2MP HD 8 - CH XVR NVR Camera Network Video Recorder Kit - Trustpick

SriHome

SriHome NVS008-AHD006 2MP HD 8-CH XVR NVR Camera Network Video Recorder Kit, NVS008-AHD006 8-CH

€125,95 EUR

Features:
1. Support TVI/AHD/DVR/NVR/CVI five-in-one function, multi-mode input
2. Support 2MN FHD analog video input
3. Support SriHome cloud platform, support remote monitoring&playback
4. Support coaxial audio monitoring, APP supports two-way voice intercom
5. Support infrared dual light, full-color night vision (alarm trigger)
6. Support 16TB hard disk, 8Ch synchronous playback and multiple playback
7. Support H.264/H.265 encoding front-end adaptive access

XVR
1. Model: NVS008 (8 channels 5MN)
2. Operating System: Embedded Linux
3. Main control chip: MC6630
4. Language: Japanese, French, Russian, Portuguese, Italian, Spanish, German, Polish, English, Simplified Chinese, Traditional Chinese
5. Video Input: 8CH
6. Resolution: Support 1280 x 720, 1920 x 1080, 1280 x 1440, 1280 x 1920
7. Audio output: 1ch HDMI, 1ch VGA
8. Decoding format: H265+/H264
9. Input Channels: Maximum support 5MN
10. Coaxial bidirectional: Support two-way Audio
11. Decoding format: Support G.711/ADPCM
12. HDMI interface: Support HDMI audio output
13. Coaxial Audio: 8ch
14. Hard disk interface: 1 SATA interface(donot support e-sata)
15. Hard drive capacity: Maximum support 16TB (not included)
16. Video recording: Manual recording, timed recording, motion detection
17. Playback Mode: Support 8CH simultaneous playback
18. Backup Mode: Support USB mobile hard disk, U disk
19. Network port: 10/100 Mbps Ethernet (RJ-45)
20. Network Protocol: TCP/IP, HDCP, DDNS, NTP, UDP, SMTP
21. Alarm mode: Motion detection alarm, human detection alarm
22. Alarm reminder: Humanoid mark, screen prompt, APP push
23. Network Interface: 1x RJ45 Network Interface
24. USB Interface: 2xUSB2.0
25. HD-MI Interface: 1
26. VGA Interface: 1
27. Power Interface: 1 x DC 12V 2A (5.5 x 2.1 x 10 )
28. Working temperature: -10 degree C ~ 50degree C
29. Working humidity: 10%~90% RH
30. APP: Support SriHome APP, iOS and Android remote access

XVR Camera
1. Model: AHD006 (1080P)
2. Main processor: ARM11
3. Sensor: 1/4 inch, 2MP high definition color CMOS sensor
4. Signal output: Support AHD 1080p25 / cvi 1080p30
5. Parameter: Focal Length: 4mm, 2MP
6. Field of view: Horizontal: 350 degrees, Vertical: 90 degrees, Diagonal: 98 degrees
7. Output: Support AHD 1080P 25fps / cvi 1080P 30fps
8. Automatic exposure: Automatic exposure and white balance
9. Night Vision: High power infrared light, high definition night vision
10. Minimum illumination: 0.01 Lux / F2.0
11. IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision
12. Electronic Amplification: 3x Electronic magnification
13. Night Vision: Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on.
14. Audio: Support two-way audio, built-in microphone and speaker
15. Product Type: Metal plastic bullet camera, for indoor and outdoor use
16. Waterproof grade: IP66
17. Power adapter: Input AC: 100~240V
18. Working temperature: -10 Degree C ~50 Degree C
19. Working humidity: 10%~90% RH
20. Product weight: Net weight: 0.36kg
21. Product size: 100x65x65 mmmm（length x width x height)

Package List
1. XVR: 1 x XVR NVS008
2. Camera: 8 x AHD006
3. Power Adapter: 2 x 12V 2A
4. Screw Pack: 10 Packs
5. Manual: 1
6. 1 to 5 power cord: 2
7. Net Cable: 1
8. Coaxial Cable: 8 x 20m

Specification:

Package Weight

One Package Weight

6.00kgs / 13.24lb

One Package Size

40cm * 30cm * 27cm / 15.75inch * 11.81inch * 10.63inch

Qty per Carton

2

Carton Weight

13.50kgs / 29.76lb

Carton Size

57cm * 34cm * 42cm / 22.44inch * 13.39inch * 16.54inch

Loading Container

20GP: 327 cartons * 2 pcs = 654 pcs
40HQ: 760 cartons * 2 pcs = 1520 pcs

Disponibile

Receives in 7 days.

SriHome NVS008 - AHD006 2MP HD 4 - CH XVR NVR Camera Network Video Recorder Kit - Trustpick

SriHome

SriHome NVS008-AHD006 2MP HD 4-CH XVR NVR Camera Network Video Recorder Kit, NVS008-AHD006 4-CH

€71,95 EUR

Features:
1. Support TVI/AHD/DVR/NVR/CVI five-in-one function, multi-mode input
2. Support 2MN FHD analog video input
3. Support SriHome cloud platform, support remote monitoring&playback
4. Support coaxial audio monitoring, APP supports two-way voice intercom
5. Support infrared dual light, full-color night vision (alarm trigger)
6. Support 16TB hard disk, 4Ch synchronous playback and multiple playback
7. Support H.264/H.265 encoding front-end adaptive access

XVR
1. Model: NVS008 (4 channels 5MN)
2. Operating System: Embedded Linux
3. Main control chip: MC6630
4. Language: Japanese, French, Russian, Portuguese, Italian, Spanish, German, Polish, English, Simplified Chinese, Traditional Chinese
5. Video Input: 4CH
6. Resolution: Support 1280 x 720, 1920 x 1080, 1280 x 1440, 1280 x 1920
7. Audio output: 1ch HDMI, 1ch VGA
8. Decoding format: H265+/H264
9. Input Channels: Maximum support 5MN
10. Coaxial bidirectional: Support two-way Audio
11. Decoding format: Support G.711/ADPCM
12. HDMI interface: Support HDMI audio output
13. Coaxial Audio: 4ch
14. Hard disk interface: 1 SATA interface(donot support e-sata)
15. Hard drive capacity: Maximum support 16TB (not included)
16. Video recording: Manual recording, timed recording, motion detection
17. Playback Mode: Support 4CH simultaneous playback
18. Backup Mode: Support USB mobile hard disk, U disk
19. Network port: 10/100 Mbps Ethernet (RJ-45)
20. Network Protocol: TCP/IP, HDCP, DDNS, NTP, UDP, SMTP
21. Alarm mode: Motion detection alarm, human detection alarm
22. Alarm reminder: Humanoid mark, screen prompt, APP push
23. Network Interface: 1x RJ45 Network Interface
24. USB Interface: 2xUSB2.0
25. HD-MI Interface: 1
26. VGA Interface: 1
27. Power Interface: 1 x DC 12V 2A (5.5 x 2.1 x 10 )
28. Working temperature: -10 degree C ~ 50degree C
29. Working humidity: 10%~90% RH
30. APP: Support SriHome APP, iOS and Android remote access

XVR Camera
1. Model: AHD006 (1080P)
2. Main processor: ARM11
3. Sensor: 1/4 inch, 2MP high definition color CMOS sensor
4. Signal output: Support AHD 1080p25 / cvi 1080p30
5. Parameter: Focal Length: 4mm, 2MP
6. Field of view: Horizontal: 350 degrees, Vertical: 90 degrees, Diagonal: 98 degrees
7. Output: Support AHD 1080P 25fps / cvi 1080P 30fps
8. Automatic exposure: Automatic exposure and white balance
9. Night Vision: High power infrared light, high definition night vision
10. Minimum illumination: 0.01 Lux / F2.0
11. IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision
12. Electronic Amplification: 3x Electronic magnification
13. Night Vision: Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on.
14. Audio: Support two-way audio, built-in microphone and speaker
15. Product Type: Metal plastic bullet camera, for indoor and outdoor use
16. Waterproof grade: IP66
17. Power adapter: Input AC: 100~240V
18. Working temperature: -10 Degree C ~50 Degree C
19. Working humidity: 10%~90% RH
20. Product weight: Net weight: 0.36kg
21. Product size: 100x65x65 mmmm（length x width x height)

Package List
1. XVR: 1 x XVR NVS008
2. Camera: 4 x AHD006
3. Power Adapter: 1 x 12V 2A
4. Screw Pack: 5 Packs
5. Manual: 1
6. 1 to 5 power cord: 1
7. Net Cable: 1
8. Coaxial Cable: 4 x 20m

Specification:

Package Weight

One Package Weight

3.20kgs / 7.06lb

One Package Size

28cm * 22cm * 25cm / 11.02inch * 8.66inch * 9.84inch

Qty per Carton

4

Carton Weight

14.50kgs / 31.97lb

Carton Size

52cm * 30cm * 48cm / 20.47inch * 11.81inch * 18.9inch

Loading Container

20GP: 356 cartons * 4 pcs = 1424 pcs
40HQ: 826 cartons * 4 pcs = 3304 pcs

Disponibile

Receives in 7 days.

SriHome NVS005 - POE030 3MP HD 4 - CH POE Camera Network Video Recorder Kit - Trustpick

SriHome

SriHome NVS005-POE030 3MP HD 4-CH POE Camera Network Video Recorder Kit, 3MP 4-CH

€114,95 EUR

1. HD 3MP PoE camera with preview, storage, and playback support.
2. Built-in microphone and speaker with two-way audio support.
3. Three night vision modes: infrared dual-light, full-color night vision, and human tracking.
4. Supports up to 16TB hard drive storage, with 1TB storing about 20 days.
5. Supports 4-channel PoE power output with a maximum power supply distance of 150 meters.
6. Supports H.264/H.265 encoding with adaptive front-end access.
7. AI intelligence: supports human alarm, motion detection alarm, alarm siren
8. Supports mobile phone remote monitoring, intercom, and playback.
9. Utilizes the SriNPT protocol, requiring no IP configuration for plug-and-play operation.
10. Expandable to up to 16 channels of simultaneous monitoring.

NVS005 Specifications
Video Output: HDMI, VGA
Compression/Decoding Format: H.264/H.265
Video Decoding: 1x5M/25fps (Main Stream), 16xD1/25fps (Common Stream)
Audio Output: HDMI, AUX
Audio Decoding Format: G.711U, AAC
Hard disk Interface: 1 x SATA, SSD & HDD
Hard disk Capacity: Max. 16TB (not included)
Video Recording: All-day recording, scheduled recording, alarm recording
Video Backup: USB backup and hard disk backup
Network: RJ45 wired connection
Network Services: Supports DHCP, DNS, DDNS, NTP, UPNP, etc.
Alarm Methods: Motion detection alarm, human detection alarm, human tracking
Alarm reminder: App push
I/O Interfaces: 1000M RJ45 x 1, 2 USB 2.0 x 2, HDMI x 1, VGA x 1, AUX audio x 1, DC 52V/48V 2.3A x 1
App: Support SriHome APP, IOS and Android remote access

POE030 Camera Specifications
Main Processor: Multi-core high-speed processor
Sensor: 1/3 inch, 3MP HD color CMOS sensor
Compression format: H.265
Lens focal length: 4mm
Viewing angle: Horizontal 80 degrees, Vertical 58 degrees, Diagonal 98 degrees
Video resolution: 3MP (2304x1296p), VGA (640x360), 15fps
Audio: Built-in speaker, can speak to the IPC through the NVR host or mobile APP. Built-in microphone, can picks up sound and transmits it to NVR host and mobile phone APP
Night Vision Modes:
Alarm Mode - The default is black and white night vision. When an alarm is detected, the white light is turned on.
White Light Mode - Turn on, full color night vision, support custom working time and adjustable brightness (default is 88)
Infrared Mode - White light is turned off and switched to normal night vision (black and white night vision)
PTZ Rotation angle: Horizontal 350 degrees, Vertical 90 degrees
Network port: RJ45
Waterproof: IP66
Dimensions: 140x120x87mm
Net weight: 268g

Specification:

Package Weight

One Package Weight

4.50kgs / 9.93lb

One Package Size

34cm * 23cm * 26cm / 13.39inch * 9.06inch * 10.24inch

Qty per Carton

4

Carton Weight

20.00kgs / 44.09lb

Carton Size

54cm * 34cm * 50cm / 21.26inch * 13.39inch * 19.69inch

Loading Container

20GP: 290 cartons * 4 pcs = 1160 pcs
40HQ: 674 cartons * 4 pcs = 2696 pcs

Disponibile

Receives in 7 days.

SriHome NVS005 - POE065 5MP HD 4 - CH POE Camera Network Video Recorder Kit - Trustpick

SriHome

SriHome NVS005-POE065 5MP HD 4-CH POE Camera Network Video Recorder Kit, 5MP 4-CH

€128,95 EUR

1. HD 5MP PoE camera with preview, storage, and playback support.
2. Built-in microphone and speaker with two-way audio support.
3. Three night vision modes: infrared dual-light, full-color night vision, and human tracking.
4. Supports up to 16TB hard drive storage, with 1TB storing about 20 days.
5. Supports 4-channel PoE power output with a maximum power supply distance of 150 meters.
6. Supports H.264/H.265 encoding with adaptive front-end access.
7. AI intelligence: supports human alarm, motion detection alarm, alarm siren
8. Supports mobile phone remote monitoring, intercom, and playback.
9. Utilizes the SriNPT protocol, requiring no IP configuration for plug-and-play operation.
10. Expandable to up to 16 channels of simultaneous monitoring.

NVS005 Specifications
Video Output: HDMI, VGA
Compression/Decoding Format: H.264/H.265
Video Decoding: 1x5M/25fps (Main Stream), 16xD1/25fps (Common Stream)
Audio Output: HDMI, AUX
Audio Decoding Format: G.711U, AAC
Hard disk Interface: 1 x SATA, SSD & HDD
Hard disk Capacity: Max. 16TB (not included)
Video Recording: All-day recording, scheduled recording, alarm recording
Video Backup: USB backup and hard disk backup
Network: RJ45 wired connection
Network Services: Supports DHCP, DNS, DDNS, NTP, UPNP, etc.
Alarm Methods: Motion detection alarm, human detection alarm, human tracking
Alarm reminder: App push
I/O Interfaces: 1000M RJ45 x 1, 2 USB 2.0 x 2, HDMI x 1, VGA x 1, AUX audio x 1, DC 52V/48V 2.3A x 1
App: Support SriHome APP, IOS and Android remote access

POE065 Camera Specifications
Main Processor: Multi-core high-speed processor
Sensor: 1/3 inch, 5MP HD color CMOS sensor
Compression format: H.265
Lens focal length: 4mm
Viewing angle: Horizontal 80 degrees, Vertical 58 degrees, Diagonal 98 degrees
Video resolution: 5MP (2560x1920P), VGA (640x360), 15fps
Audio: Built-in speaker, can speak to the IPC through the NVR host or mobile APP. Built-in microphone, can picks up sound and transmits it to NVR host and mobile phone APP
Night Vision Modes:
Alarm Mode - The default is black and white night vision. When an alarm is detected, the white light is turned on.
White Light Mode - Turn on, full color night vision, support custom working time and adjustable brightness (default is 88)
Infrared Mode - White light is turned off and switched to normal night vision (black and white night vision)
Network port: RJ45
Waterproof: IP66
Dimensions: 80x80x150mm
Net weight: 230g

Specification:

Package Weight

One Package Weight

4.55kgs / 10.04lb

One Package Size

40cm * 26cm * 29cm / 15.75inch * 10.24inch * 11.42inch

Qty per Carton

4

Carton Weight

20.00kgs / 44.09lb

Carton Size

58cm * 52cm * 40cm / 22.83inch * 20.47inch * 15.75inch

Loading Container

20GP: 221 cartons * 4 pcs = 884 pcs
40HQ: 513 cartons * 4 pcs = 2052 pcs

Disponibile

Receives in 7 days.

SriHome NVS005-POE065 3MP HD 4-CH POE Camera Network Video Recorder Kit, 3MP 4-CH

SriHome

SriHome NVS005-POE065 3MP HD 4-CH POE Camera Network Video Recorder Kit, 3MP 4-CH

€109,95 EUR

1. HD 3MP PoE camera with preview, storage, and playback support.
2. Built-in microphone and speaker with two-way audio support.
3. Three night vision modes: infrared dual-light, full-color night vision, and human tracking.
4. Supports up to 16TB hard drive storage, with 1TB storing about 20 days.
5. Supports 4-channel PoE power output with a maximum power supply distance of 150 meters.
6. Supports H.264/H.265 encoding with adaptive front-end access.
7. AI intelligence: supports human alarm, motion detection alarm, alarm siren
8. Supports mobile phone remote monitoring, intercom, and playback.
9. Utilizes the SriNPT protocol, requiring no IP configuration for plug-and-play operation.
10. Expandable to up to 16 channels of simultaneous monitoring.

NVS005 Specifications
Video Output: HDMI, VGA
Compression/Decoding Format: H.264/H.265
Video Decoding: 1x5M/25fps (Main Stream), 16xD1/25fps (Common Stream)
Audio Output: HDMI, AUX
Audio Decoding Format: G.711U, AAC
Hard disk Interface: 1 x SATA, SSD & HDD
Hard disk Capacity: Max. 16TB (not included)
Video Recording: All-day recording, scheduled recording, alarm recording
Video Backup: USB backup and hard disk backup
Network: RJ45 wired connection
Network Services: Supports DHCP, DNS, DDNS, NTP, UPNP, etc.
Alarm Methods: Motion detection alarm, human detection alarm, human tracking
Alarm reminder: App push
I/O Interfaces: 1000M RJ45 x 1, 2 USB 2.0 x 2, HDMI x 1, VGA x 1, AUX audio x 1, DC 52V/48V 2.3A x 1
App: Support SriHome APP, IOS and Android remote access

POE065 Camera Specifications
Main Processor: Multi-core high-speed processor
Sensor: 1/3 inch, 3MP HD color CMOS sensor
Compression format: H.265
Lens focal length: 4mm
Viewing angle: Horizontal 80 degrees, Vertical 58 degrees, Diagonal 98 degrees
Video resolution: 3MP (2304x1296p), VGA (640x360), 15fps
Audio: Built-in speaker, can speak to the IPC through the NVR host or mobile APP. Built-in microphone, can picks up sound and transmits it to NVR host and mobile phone APP
Night Vision Modes:
Alarm Mode - The default is black and white night vision. When an alarm is detected, the white light is turned on.
White Light Mode - Turn on, full color night vision, support custom working time and adjustable brightness (default is 88)
Infrared Mode - White light is turned off and switched to normal night vision (black and white night vision)
Network port: RJ45
Waterproof: IP66
Dimensions: 80x80x150mm
Net weight: 230g

Specification:

Package Weight

One Package Weight

4.50kgs / 9.93lb

One Package Size

34cm * 23cm * 26cm / 13.39inch * 9.06inch * 10.24inch

Qty per Carton

4

Carton Weight

20.00kgs / 44.09lb

Carton Size

54cm * 34cm * 50cm / 21.26inch * 13.39inch * 19.69inch

Loading Container

20GP: 290 cartons * 4 pcs = 1160 pcs
40HQ: 674 cartons * 4 pcs = 2696 pcs

Disponibile

Receives in 7 days.

TN - 6 Multifunctional HD WIFI Mini Camera Video Recorder - Trustpick

Trustpick

TN-6 Multifunctional HD WIFI Mini Camera Video Recorder, TN-6

€15,95 EUR

Disponibile

Receives in 7 days.

TN - 5 1080P HD WIFI Mini Camera Video Recorder - Trustpick

Trustpick

TN-5 1080P HD WIFI Mini Camera Video Recorder, TN-5

€17,95 EUR

Disponibile

Receives in 7 days.

GW70 1080P HD WIFI Night Vision Mini Video Recorder - Trustpick

Trustpick

GW70 1080P HD WIFI Night Vision Mini Video Recorder, GW70

€33,95 EUR

Disponibile

Receives in 7 days.

Z7 1080P HD Night Vision Magnetic Video Recorder with Back Clip - Trustpick

Trustpick

Z7 1080P HD Night Vision Magnetic Video Recorder with Back Clip, Z7

€15,95 EUR

Disponibile

Receives in 7 days.

B21 120 Degree Wide Angle 1080P HD Magnetic Recorder - Trustpick

Trustpick

B21 120 Degree Wide Angle 1080P HD Magnetic Recorder, B21

€26,95 EUR

Disponibile

Receives in 7 days.

A82 IR Night Vision Rotating Lens 2K HD Video WiFi Recorder with Back Clip - Trustpick

Trustpick

A82 IR Night Vision Rotating Lens 2K HD Video WiFi Recorder with Back Clip, A82

€31,95 EUR

Disponibile

Receives in 7 days.

ZC - M11 180 Degree Rotation 4K HD Travel Recorder - Trustpick

Trustpick

ZC-M11 180 Degree Rotation 4K HD Travel Recorder, Wifi Version, Ordinary

Da €17,95 EUR

Disponibile

Receives in 7 days.

A3 1.5 inch Color Screen 180 Degree Rotation HD Outdoor Sports Recorder - Trustpick

Trustpick

A3 1.5 inch Color Screen 180 Degree Rotation HD Outdoor Sports Recorder, A3

€42,95 EUR

Disponibile

Receives in 7 days.

L7 Mini Camera D3 Full HD 1080P Micro Body Camcorder Night Vision DV Video Voice Recorder - Trustpick

Trustpick

L7 Mini Camera D3 Full HD 1080P Micro Body Camcorder Night Vision DV Video Voice Recorder

€9,95 EUR

Disponibile

Receives in 7 days.

JNN V20 1080P HD Video Motion Detection Recorder - Trustpick

Trustpick

JNN V20 1080P HD Video Motion Detection Recorder, 4GB, 8GB, 16GB, 32GB, 64GB, 128G, 256G

Da €23,95 EUR

Disponibile

Receives in 7 days.

JNN V18 1080P Infrared Light Filling HD Video Recorder - Trustpick

JNN

JNN V18 1080P Infrared Light Filling HD Video Recorder, 16GB, 32GB, 64GB, 128G, 256G

Da €28,95 EUR

Disponibile

Receives in 7 days.

iDV L13 1080P Portable HD Mini Audio Video Recorder - Trustpick

Trustpick

iDV L13 1080P Portable HD Mini Audio Video Recorder, L13

€17,95 EUR

Disponibile

Receives in 7 days.

B40 2K Portable Mini Camera HD Video Recorder Support Loop Recording & Motion Detection - Trustpick

Trustpick

B40 2K Portable Mini Camera HD Video Recorder Support Loop Recording & Motion Detection, B40

€35,95 EUR

Disponibile

Receives in 7 days.

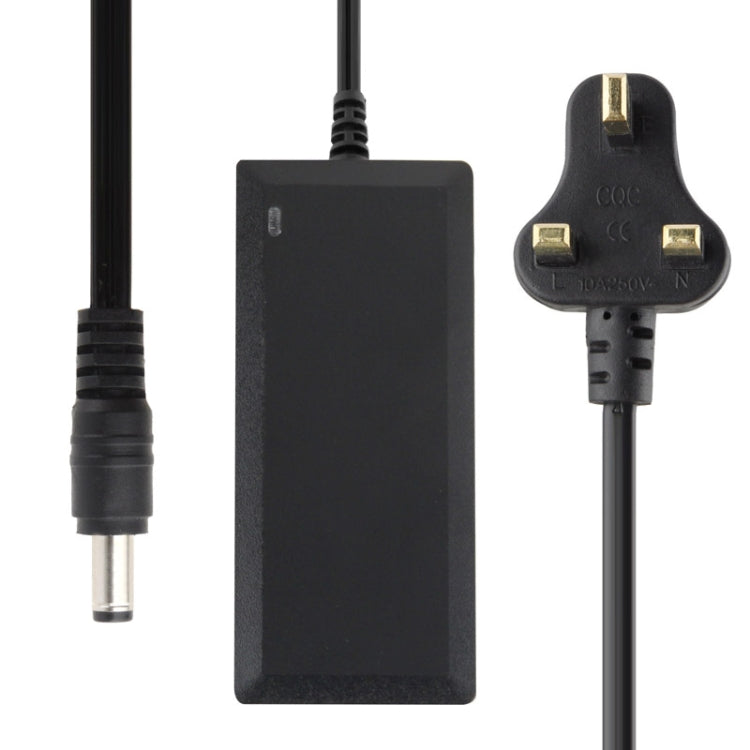

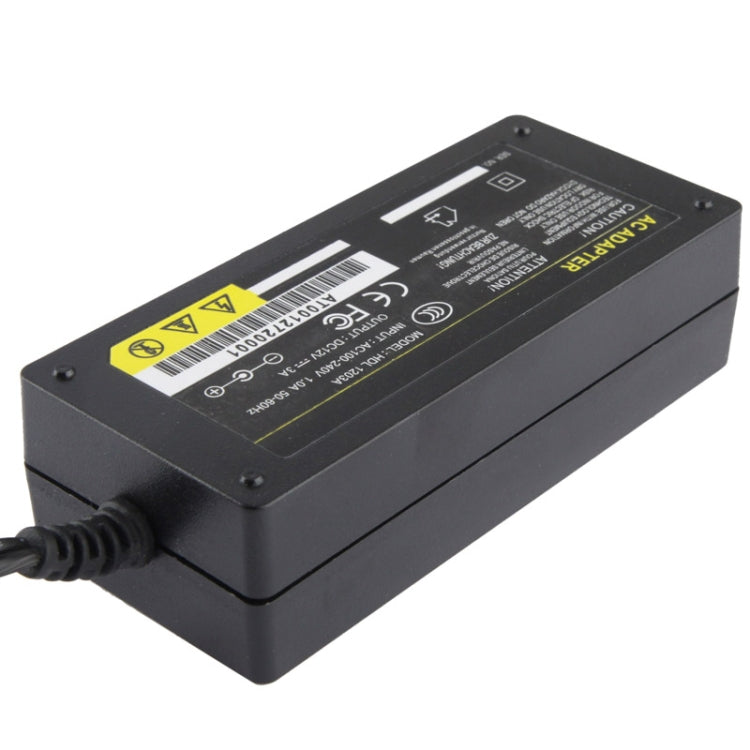

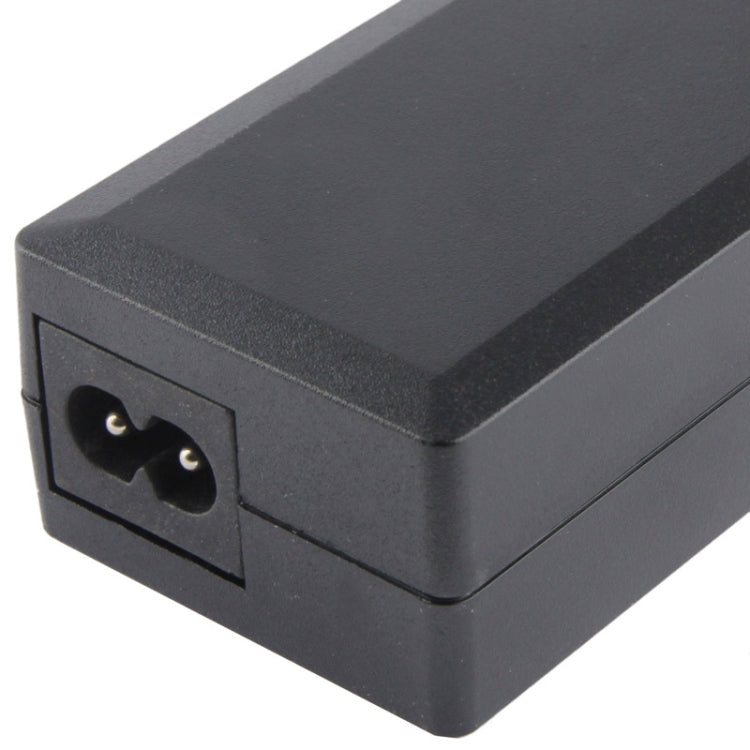

US Plug 12V 2A / 4 Channel DVR AC Power Adapter, Output Tips: 5.5 x 2.5mm, US Plug, EU Plug, UK Plug, EU Plug 12V 2A

Trustpick

US Plug 12V 2A / 4 Channel DVR AC Power Adapter, Output Tips: 5.5 x 2.5mm, US Plug, EU Plug, UK Plug, EU Plug 12V 2A

€4,95 EUR

Disponibile

Receives in 7 days.

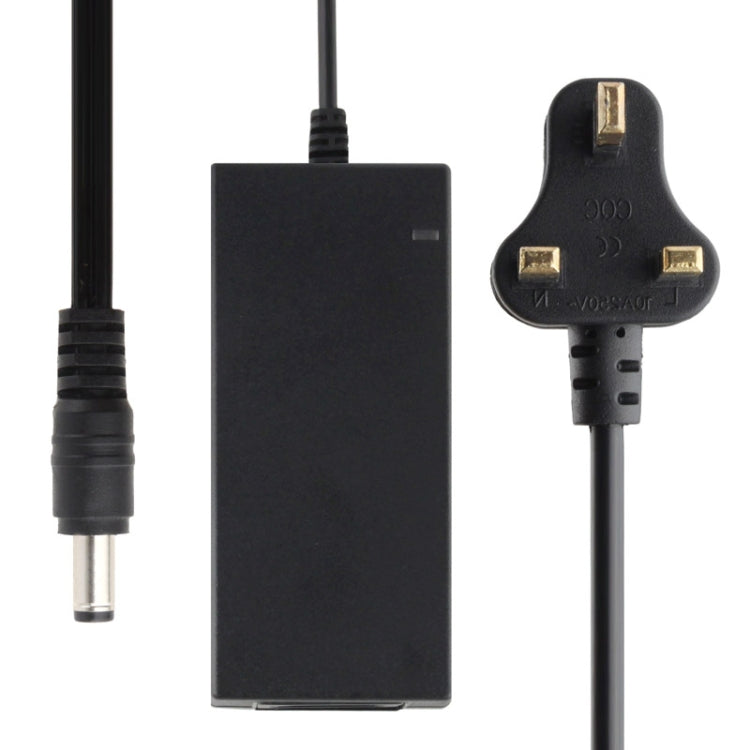

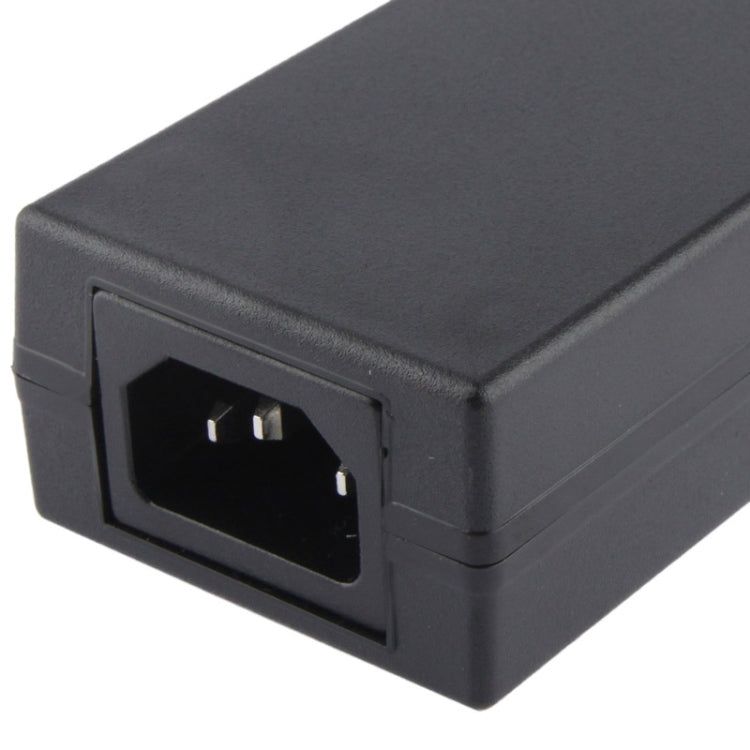

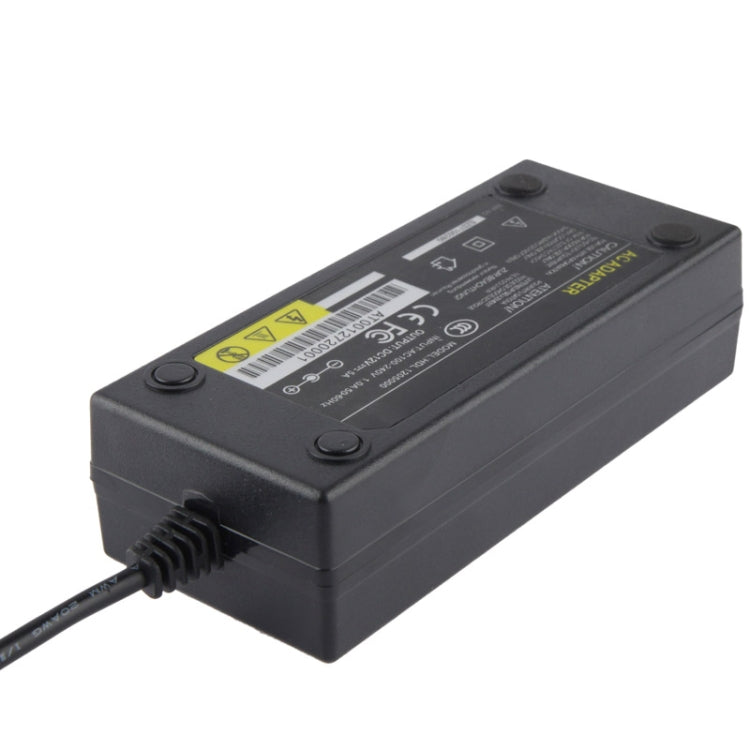

US Plug 12V 5A / 16 Channel DVR AC Power Adapter, Output Tips: 5.5 x 2.5mm, EU Plug 12V 5A, AU Plug 12V 5A, UK Plug 12V 5A, US Plug 12V 5A

Trustpick

US Plug 12V 5A / 16 Channel DVR AC Power Adapter, Output Tips: 5.5 x 2.5mm, EU Plug 12V 5A, AU Plug 12V 5A, UK Plug 12V 5A, US Plug 12V 5A

€5,95 EUR

Disponibile

Receives in 7 days.

EU Plug 12V 4A / 8 Channel DVR AC Power Adapter, Output Tips: 5.5 x 2.5mm, EU Plug 12V 4A, AU Plug 12V 4A, UK Plug 12V 4A, US Plug 12V 4A

Trustpick

EU Plug 12V 4A / 8 Channel DVR AC Power Adapter, Output Tips: 5.5 x 2.5mm, EU Plug 12V 4A, AU Plug 12V 4A, UK Plug 12V 4A, US Plug 12V 4A

€5,95 EUR

Disponibile

Receives in 7 days.

UK Plug 12V 3A / 4 Channel DVR AC Power Adapter, Output Tips: 5.5 x 2.5mm, EU Plug 12V 3A, AU Plug 12V 3A, UK Plug 12V 3A, US Plug 12V 3A

Trustpick

UK Plug 12V 3A / 4 Channel DVR AC Power Adapter, Output Tips: 5.5 x 2.5mm, EU Plug 12V 3A, AU Plug 12V 3A, UK Plug 12V 3A, US Plug 12V 3A

€4,95 EUR

Disponibile

Receives in 7 days.

N4B7M 4Ch 960P P2P ONVIF 1.3 Mega Pixel IP Camera NVR Kit, Support Night Vision / Motion Detection, IR Distance: 20m - Trustpick

Trustpick

N4B7M 4Ch 960P P2P ONVIF 1.3 Mega Pixel IP Camera NVR Kit, Support Night Vision / Motion Detection, IR Distance: 20m, N4B7M/Kit

€109,95 EUR

Features
1. Support 4CH 960P/1080P 1 HDD NVR.
2. 4 x 1.3MP IP Camera(1x LED Array, IR distance 20m).
3. High performance H.264 compression technology, processing and flexible.
4. Plug and play(i8s Super agreement): One-click setting, IP address was assigned automatically.
5. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place, mobile viewing, support all smartphone systems.
6. Support Onvif protocol, support high profile S, high profile G, compatible with different IP camera that based on Onvif, RTSP standard.
7. Offer CMS for free.

NVR
1. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place.
2. Support Onvif protocol, support high profile S, high profile G, compatible with different IP camera that based on Onvif, RTSP standard.
3. Support megapixel HD network video preview, storage and playback.
4. Support search, playback and backup by event.
5. Support all channel image display on one screen at same time, support 4 channels' image display by mainstream, and 4 channels playback.
6. Support monitor PTZ on preview mode.
7. Offer CMS for free.
8. Dual stream: Each channel can set main stream and sub stream
9. Video standard: 1080P(1920*1080)30fps /960P (1280*960) /720P (1280*720)30fps
10. Monitoring image quality: 1080P(1920*1080) / 960P (1280*960) / 720P(1280*720)
11. Image motion detection: Each screen can set mutiple detection areas and set 6-level sensitivit y(IPC support)
12. Recording playback quality: Any 4ch playback simultaneously
13. Region cover: Every channel can set 4 cover regions (IPC Support)
14 Recording Mode: Support manual, auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
15. Backup Way: Support U disk, USB mobile HDD, USB DVD-RW network storage and backup
16. Operation Way: Mouse
17. Local Login:User name and password
18. Recording Storage: Local HDD, network
19. Video Input:
4 x (1280*720) +sub(960*576)+4Ref.+4Play 4CH 1.0MP IP Camera
4 x (1280*960)+sub(960*576)+1Ref.+4Play 4CH 1.3MP IP Camera
4 x (1920*1080)+sub(960*576)+4Ref.+1Play 4CH 2.0MP IP Camera
1 x (1920*1080)+sub(960*576)+4Ref.+1Play 1CH 1.0MP IP Camera
4 x (720*576)+sub(352*288)+4Ref.+4Play 4CH D1 IP Camera
20. Audio Input: 4ch network audio input
21. SATA HDD Port: Support MAX 4TB HDD

IP Camera
1. 1/3 inch Megapixel CMOS Sensor. High resolution 1.3MP.
2. 3.6mm-8mm 1.3 Megapixels lens optional. IR distance 20m.
3. Performance dual-core 32-bit DSP, embedded RTOS settings.
4. High performance H.264 compression technology, processing and flexible, high compression ratio 25 FPS(1280*960P@25FPS).
5. Dual stream network transmission, for a variety of network environments.
6. Motion detection. Linkage video.
7. HD picture quality, resolution up to 920P (1280x920) real-time image.
8. Minimum illumination up 0 LUX (IR ON).
9. Support IR CUT dual OLP Switching, monitored day and night to achieve.
10. Support mobile phone monitoring (compatible with iPhone / Android) P2P.
11. Support ONVIF.
12. Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download.
13. Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone. monitoring (iPhone, Android), through service "through clouds" and provide complete development kit SDK.

Specification:

General

Model

N4B7M

Shape

Bullet

Mount Types

Wall bracket

Power Supply

DC 12V 1.0A

Performance

Motion detection, Night Vision

Interface

RJ45, DC Jack

Network

Network Interface

RJ45 10/100MB Ethernet interface

Protocol

DDNS, NTP, UPNP, DHCP, PPPOE, FTP, RTSP

System / Hardware

Mobile Access

Android, iPhone OS

Image Sensor

CMOS

Sensor Size

1/3 inch Progressive Scan

Pixels

1.3MP

Minimum Illumination

Color: 1.0Lux/F1.2, B/W: 0.1Lux/F1.2

Media Format

Video Compression Format

H.264

Frame Rate (FPS)

1-25fps

Resolution

1280*960

Main Stream

1280 x 960

Sub Stream

1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 480 x 270, 352 x 288, 320 x 240, 352 x 192, 320 x 192, 288 x 192, 256 x 192

Night Vision

Infrared Distance

20m

IR LED

1 x Array LED

NVR

Video interface

Video output: 1ch VGA and 1ch HDMI

Network

RJ45, 10M/100M self-adaptive LAN port

USB Port

2 x USB 2.0 ports

Wireless Port

3G, WiFi

HDD	SATA HDD (not included), Max 4TB

Mobile Surveillance

Support ( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Operation temperature

-10 to 55 Degree Celsius

Operation humidity

10-90 percent

Power

DC 12V 2.0A

Physical Environment

Environment

Outdoor, Indoor

Dimensions

Size	26022043mm NVR

Weight

1.5kg NVR

Package Include

Package Contents

4 x Cameras
1 x Mounting Accessories
1 x NVR
1 x CD
4 x Power Chargers
1 x Power Charger

Package Weight

One Package Weight

3.28kgs / 7.22lb

One Package Size

37cm * 27cm * 21cm / 14.57inch * 10.63inch * 8.27inch

Qty per Carton

4

Carton Weight

18.60kgs / 41.01lb

Carton Size

44cm * 56cm * 39cm / 17.32inch * 22.05inch * 15.35inch

Loading Container

20GP: 277 cartons * 4 pcs = 1108 pcs
40HQ: 644 cartons * 4 pcs = 2576 pcs

Disponibile

Receives in 7 days.

N4B - Mini/L 4 Ch 720P 1.0 Mega Pixel IP Camera NVR Kit, Support Night Vision / Motion Detection, IR Distance: 20m - Trustpick

Trustpick

N4B-Mini/L 4 Ch 720P 1.0 Mega Pixel IP Camera NVR Kit, Support Night Vision / Motion Detection, IR Distance: 20m, N4B-Mini/L

€128,95 EUR

Features
1. Support 4CH 960P/1080P 1 HDD NVR
2. 4x 1MP IP Camera(24* 5mm IR LED, IR distance 20m)
3. High performance H.264 compression technology, processing and flexible
4. Plug and play(i8s Super agreement): One-click setting, IP address was assigned automatically
5. P2P cloud service, including cloud connecting, cloud monitoring,cloud transmitting to access IPC and NVR at any time and any place, Mobile viewing,support all smartphone systems
6. Support Onvif protocol, support high profile S, high profile G, compatible with different IP camera that based on Onvif, RTSP standard
7. Offer CMS for free

NVR
1. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
2. Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
3. Support megapixel HD network video preview, storage and playback;
4. Support search, playback and backup by event;
5. Support all channel image display on one screen at same time, support 4 channels' image display by mainstream, and 4 channels playback;
6. Support monitor PTZ on preview mode
7. Offer CMS for free
8. Dual stream: Each channel can set main stream and sub stream
9. Video standard: 1080P(1920*1080)30fps / 960P / (1280*960) / 720P (1280*720) 30fps
10. Monitoring image quality: 1080P(1920*1080) / 960P/(1280*960)/720P(1280*720)
11. Image motion detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC support)
12. Recording playback quality: 4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P
13. Region cover: Every channel can set 4 cover regions (IPC support)
14. Recording mode: Support manual , auto, dynamic detection, alarm trigger record mode (Partly needs IPC support)
15. Backup way: Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
16. Operation way: Mouse, Keyboard
17. Local login: User name and password
18. Recording storage: Local HDD, network
19. Video Input
4x(1920*720) + sub(960*576) + 4Ref.+ 4Play 4ch 1.0MP IP Camera
4x(1280*960) + sub(960*576) + 1Ref.+ 4Play 4ch 1.3MP IP Camera
4x(1920*1080) + sub(960*576) + 4Ref.+ 1Play 4ch 2.0MP IP Camera
1x(1920*1080) + sub(960*576) + 4Ref.+ 1Play 1ch 2.0MP IP Camera
4x(720*576)+sub(352*288) + 4Ref. + 4Play 4ch D1 IP Camera
20. Audio Input: 4ch network audio input
21. Desktop Installation, Mini II 1HDD (2.5 inch) NVR, Support 4T HDD

IP Camera
1. High performance H.264 compression technology, processing and flexible, high compression ratio.
2. Support IR CUT dual OLP Switching, monitored day and night to achieve.
3. Dual stream network transmission, for a variety of network environments
4. Support P2P mobile phone monitoring (compatible iPhone / Android)
5. Support Onvif.
6. Motion detection, linkage video.
7. Support dual-stream, AVI format; support adjustable stream 0.1M~6Mpbs.
8. 1*RJ45 Ethernet interface, 10/100M self-adaptation and can resist 6kv static electricity.
9. Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download.
10. Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (iPhone / Android), through service "through clouds" P2P and provide complete development kit SDK.

Specification:

General

Model

N4B-Mini/L

Shape

Bullet

Mount Types

Ceiling Bracket

Power Depletion

5W

Power Supply

DC 12V 1.0A

Performance

Motion detection, Night Vision

Interface

RJ45, DC Jack

Network

Network Interface

RJ45 10/100MB Ethernet interface

Protocol

DDNS, NTP, UPNP, DHCP, PPPOE, FTP, RTSP

SDK

System / Hardware

Mobile Access

Android, iPhone OS

Image Sensor

CMOS

Sensor Size

1/4 inch Progressive Scan

Pixels

1.0MP

Minimum Illumination

Color: 1.0Lux/F1.2, B/W: 0.1Lux/F1.2

Media Format

Video Compression Format

H.264, AVI

Frame Rate (FPS)

1-22fps

Resolution

1280*720

Main Stream

1280 x 720

Sub Stream

2048 x 1536, 1024 x 768, 1600 x 1200, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 480 x 270, 352 x 288, 320 x 240, 352 x 192, 320 x 192, 288 x 192, 256 x 192, 1280 x 1024, 1920 x 1080

Night Vision

Infrared Distance

20m

IR LED

24 * 5mm LEDs

NVR

System

Operating system: Embedded LINUX OS

Image Code Control

Image code quality adjustable, Variable bitstream and constant bitstream optional

Network

RJ45, 10M/100M/1000M self-adaptive LAN port

USB Port

USB 2.0 x 2

Wireless Port

WiFi

HDD	2.5 inch HDD (not included), Max 4TB

Operation temperature

-10 to 55 Degree Celsius

Operation humidity

10-90 percent

Power

DC 5V 2.0A

Physical Environment

Environment

Outdoor, Indoor

Dimensions

Size	16216235mm NVR

Weight

280g NVR

Package Include

Package Contents

4 x Cameras
1 x Mounting Accessories
1 x NVR
1 x CD
4 x Power Chargers
1 x Power Charger

Package Weight

One Package Weight

2.70kgs / 5.95lb

One Package Size

37cm * 22cm * 16cm / 14.57inch * 8.66inch * 6.3inch

Qty per Carton

4

Carton Weight

11.50kgs / 25.35lb

Carton Size

39cm * 46cm * 34cm / 15.35inch * 18.11inch * 13.39inch

Loading Container

20GP: 437 cartons * 4 pcs = 1748 pcs
40HQ: 1014 cartons * 4 pcs = 4056 pcs

Disponibile

Receives in 7 days.

N4B7 - Mini/L 4 Ch 720P 1.0 Mega Pixel IP Camera NVR Kit, Support Night Vision / Motion Detection, IR Distance: 20m - Trustpick

Trustpick

N4B7-Mini/L 4 Ch 720P 1.0 Mega Pixel IP Camera NVR Kit, Support Night Vision / Motion Detection, IR Distance: 20m, N4B7-Mini/L

€128,95 EUR

Features
1. Support 4CH 960P/1080P 1 HDD NVR
2. 4x 1MP IP Camera(1 x LED Array, IR distance 20m)
3. High performance H.264 compression technology, processing and flexible
4. Plug and play(i8s Super agreement): One-click setting, IP address was assigned automatically
5. P2P cloud service, including cloud connecting, cloud monitoring,cloud transmitting to access IPC and NVR at any time and any place, Mobile viewing,support all smartphone systems
6. Support Onvif protocol, support high profile S, high profile G, compatible with different IP camera that based on Onvif, RTSP standard
7. Offer CMS for free

NVR
1. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
2. Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
3. Support megapixel HD network video preview, storage and playback;
4. Support search, playback and backup by event;
5. Support all channel image display on one screen at same time, support 4 channels' image display by mainstream, and 4 channels playback;
6. Support monitor PTZ on preview mode
7. Offer CMS for free
8. Dual stream: Each channel can set main stream and sub stream
9. Video standard: 1080P(1920*1080)30fps / 960P / (1280*960) / 720P (1280*720) 30fps
10. Monitoring image quality: 1080P(1920*1080) / 960P/(1280*960)/720P(1280*720)
11. Image motion detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC support)
12. Recording playback quality: 4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P
13. Region cover: Every channel can set 4 cover regions (IPC support)
14. Recording mode: Support manual , auto, dynamic detection, alarm trigger record mode (Partly needs IPC support)
15. Backup way: Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
16. Operation way: Mouse, Keyboard
17. Local login: User name and password
18. Recording storage: Local HDD, network
19. Video Input
4x(1920*720) + sub(960*576) + 4Ref.+ 4Play 4ch 1.0MP IP Camera
4x(1280*960) + sub(960*576) + 1Ref.+ 4Play 4ch 1.3MP IP Camera
4x(1920*1080) + sub(960*576) + 4Ref.+ 1Play 4ch 2.0MP IP Camera
1x(1920*1080) + sub(960*576) + 4Ref.+ 1Play 1ch 2.0MP IP Camera
4x(720*576)+sub(352*288) + 4Ref. + 4Play 4ch D1 IP Camera
20. Audio Input: 4ch network audio input
21. Desktop Installation, Mini II 1HDD (2.5 inch) NVR, Support 4T HDD

IP Camera
1. 1/3 inch Megapixel CMOS Sensor. High resolution 1MP
2. 3.6mm-8mm 1.0 Megapixels lens optional. IR distance 20m
3. Scheme using Hi Silicon (3518+9715). High-performance dual-core 32-bit DSP, embedded RTOS settings
4. High performance H.264 compression technology, processing and flexible, high compression ratio 25 FPS(1280*720P@25FPS)
5. Dual stream network transmission, for a variety of network environments
6. Motion detection. Linkage video
7. HD picture quality, resolution up to 720P (1280 x720) real-time image
8. Minimum illumination up 0 LUX (IR ON)
9. Support IR CUT dual OLP Switching, monitored day and night to achieve
10. Support mobile phone monitoring (compatible with iPhone / Android) P2P
11. Support ONVIF
12. Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download
13. Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (iPhone, Android), through service "through clouds" and provide complete development kit SDK

Specification:

General

Model

N4B7-Mini/L

Shape

Bullet

Mount Types

Wall bracket

Power Supply

DC 12V 1.0A

Performance

Motion detection, Night Vision

Interface

RJ45, DC Jack

Network

Network Interface

RJ45 10/100MB Ethernet interface

Protocol

DDNS, NTP, UPNP, DHCP, PPPOE, FTP, RTSP

System / Hardware

Mobile Access

Android, iPhone OS

Image Sensor

CMOS

Pixels

1.0MP

Minimum Illumination

Color: 1.0Lux/F1.2, B/W: 0.1Lux/F1.2

Media Format

Video Compression Format

H.264

Frame Rate (FPS)

1-22fps

Resolution

1280*720

Main Stream

1280 x 720

Sub Stream

1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 480 x 270, 352 x 288, 320 x 240, 352 x 192, 320 x 192, 288 x 192, 256 x 192

Night Vision

Infrared Distance

20m

IR LED

1 x Array LED

NVR

System

Operating system: Embedded LINUX OS

Image Code Control

Image code quality adjustable, Variable bitstream and constant bitstream optional

Network

RJ45, 10M/100M/1000M self-adaptive LAN port

USB Port

USB 2.0 x 2

Wireless Port

WiFi

HDD	2.5 inch HDD (not included), Max 4TB

Mobile Surveillance

Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Operation temperature

-10 to 55 Degree Celsius

Operation humidity

10-90 percent

Power

DC 5V 2.0A

Physical Environment

Environment

Outdoor, Indoor

Dimensions

Size	16216235mm NVR

Weight

280g NVR

Package Include

Package Contents

4 x Cameras
1 x Mounting Accessories
1 x NVR
1 x CD
4 x Power Chargers
1 x Power Charger

Package Weight

One Package Weight

2.70kgs / 5.95lb

One Package Size

37cm * 22cm * 16cm / 14.57inch * 8.66inch * 6.3inch

Qty per Carton

4

Carton Weight

11.50kgs / 25.35lb

Carton Size

39cm * 46cm * 34cm / 15.35inch * 18.11inch * 13.39inch

Loading Container

20GP: 437 cartons * 4 pcs = 1748 pcs
40HQ: 1014 cartons * 4 pcs = 4056 pcs

Disponibile

Receives in 7 days.

3 Channel Multiplexer Transmitter and Receiver - Trustpick

Trustpick

3 Channel Multiplexer Transmitter and Receiver

€52,95 EUR

About the product
1. This product bound the video signal of the camera and the control signal of RS485 reverse controller in one coaxial cable transmission. It use frequency division multiplexing technique, which means the control signal and video signal in different frequency modulation, and composite together transmission. It can transmit four channel homonymous or reverse transmission video signal and RS485 control signal in one cable. It can transmit 600 meters by using common video cable, which can enhance the utilization rate of cable, also it has many characteristics, such as a clear image, easy for installation and so on.
2. It has solved control signal transmission over a long distance, greatly extended video signal transmission distance. The transmission way save material and cost, construction is convenient, without debugging, stable, reliable, etc. System extension and transformation is more flexibility. It is an ideal equipment of control signal transmission

Illustration
1. Signal input be connected receiver
2. Line out
3. DC12V power supply
4. Power supply indicator lamp
5. Video signal out
6. Back to room main line
7. Connected DC12V power supply
8. Power indicator light

Attentions
1. L<=500m; 1<=500m; (1 +L)<=500m.
2. Before using this equipment, please carefully read the description of the device.
3. Installation in strict accordance with regulations.
4. Note that the equipment is waterproof, moisture-proof, and handle with care.
5. Please use stable power supply voltage DC12V.
6. Please install the appropriate height to avoid damage, electric shock.
7. Before plug-in power, please according to the panel chart shown below, connect the cable;
8. Check whether the connection cable firm, in case contact undesirable.
9. Equipment failure, do not open without authorization, please contact the after-sale service department.

Specification:

Package Weight

One Package Weight

0.53kgs / 1.17lb

One Package Size

26cm * 16cm * 5cm / 10.24inch * 6.3inch * 1.97inch

Qty per Carton

20

Carton Weight

10.00kgs / 22.05lb

Carton Size

52cm * 34cm * 28cm / 20.47inch * 13.39inch * 11.02inch

Loading Container

20GP: 538 cartons * 20 pcs = 10760 pcs
40HQ: 1250 cartons * 20 pcs = 25000 pcs

Disponibile

Receives in 7 days.

4 Channel Video Multiplexer Transmitter and Receiver - Trustpick

Trustpick

4 Channel Video Multiplexer Transmitter and Receiver

€66,95 EUR

About the product
1. This product bound the video signal of the camera and the control signal of RS485 reverse controller in one coaxial cable transmission. It use frequency division multiplexing technique, which means the control signal and video signal in different frequency modulation, and composite together transmission. It can transmit four channel homonymous or reverse transmission video signal and RS485 control signal in one cable. It can transmit 600 meters by using common video cable, which can enhance the utilization rate of cable, also it has many characteristics, such as a clear image, easy for installation and so on.
2. It has solved control signal transmission over a long distance, greatly extended video signal transmission distance. The transmission way save material and cost, construction is convenient, without debugging, stable, reliable, etc. System extension and transformation is more flexibility. It is an ideal equipment of control signal transmission

Attentions
1. L<=500m; 1<=500m; (1 +L)<=500m.
2. Before using this equipment, please carefully read the description of the device.
3. Installation in strict accordance with regulations.
4. Note that the equipment is waterproof, moisture-proof, and handle with care.
5. Please use stable power supply voltage DC12V.
6. Please install the appropriate height to avoid damage, electric shock.
7. Before plug-in power, please according to the panel chart shown below, connect the cable;
8. Check whether the connection cable firm, in case contact undesirable.
9. Equipment failure, do not open without authorization, please contact the after-sale service department.

Illustration
1. Line in connected receiver
2. DC12V power supply
3. Power supply indicator lamp
4. Video in connected camera
5. Line in connection transmitter
6. Video out connected monitor or DVR.

Specification:

Package Weight

One Package Weight

0.96kgs / 2.13lb

One Package Size

33cm * 18.5cm * 5.5cm / 12.99inch * 7.28inch * 2.17inch

Qty per Carton

20

Carton Weight

14.80kgs / 32.63lb

Carton Size

57cm * 39cm * 35cm / 22.44inch * 15.35inch * 13.78inch

Loading Container

20GP: 342 cartons * 20 pcs = 6840 pcs
40HQ: 795 cartons * 20 pcs = 15900 pcs

Disponibile

Receives in 7 days.

4CH H.264 720P HD Bullet IP Camera NVR Kit, 30m IR Night Vision, Support Video / Audio Input - Trustpick

Trustpick

4CH H.264 720P HD Bullet IP Camera NVR Kit, 30m IR Night Vision, Support Video / Audio Input, 4CH H.264 720P

€119,95 EUR

NVR
1. Can connect IP camera, IP speed dome camera and DVS
2. High performance H.264 compression technology, processing and flexible
3. Plug and play (i8s Super agreement): One-click setting, IP address was assigned automatically
4. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place, Mobile viewing, support all smartphone systems
5. Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
6. Offer CMS for free
7. Compatible with main brand IP cameras: AXIS, SONY, Panasonic, SANYO, BOSCH, SAMSUNG, Honeywell, VIVOTEK, Ambarella, HIKVISION, DAHUA, Histream, Grandstream, TOPSEE, Launch, WISION, HYVISION, WAPA etc.
8. Embedded LINUX operating system
9. Image Code Control: Image code quality adjustable, variable bitstream and constant bitstream optional
10. Dual Stream: Each channel can set main stream and sub stream
11. Video Standard:1080P(1920*1080)30fps/960P/(1280*960)/720P(1280*720)30fps
12. Monitoring Image Quality:1080P(1920*1080) / 960P/(1280*960)/720P(1280*720)
13. Image Motion Detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)
14. Recording Playback Quality: Any 4ch playback simultaneously
15. Region cover: Every channel can set 4 cover regions, IPC support
16. Recording mode: Support manual, auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
17. Support U disk, USB mobile HDD, USB DVD-RW network storage and backup
18. Video Input:
- 4 x (1280*720) +sub(960*576)+4Ref.+4Play 4CH 1.0MP IP Camera
- 4 x (1280*960)+sub(960*576)+1Ref.+4Play 4CH 1.3MP IP Camera
- 4 x (1920*1080)+sub(960*576)+4Ref.+1Play 4CH 2.0MP IP Camera
- 4 x (1920*1080)+sub(960*576)+4Ref.+1Play 1CH 1.0MP IP Camera
- 4 x (720*576) +sub(352*288)+4Ref.+4Play 4CH D1 IP Camera

IP Camera
1. High performance H.264 compression technology, processing and flexible, high compression ratio
2. Support IR CUT dual OLP Switching, monitored day and night to achieve
3. Dual stream network transmission, for a variety of network environments
4. Support P2P mobile phone monitoring (compatible Iphone / Android)
5. Support Onvif
6. Motion detection, linkage video

Specification:

General

Shape

Bullet

Power Supply

DC 12V 1.0A

Performance

Motion detection, Night Vision

Network

Network Transmission

P2P

System / Hardware

Mobile Access

Android, iPhone OS, iPad

Pixels

1.0MP

Media Format

Video Compression Format

H.264

Night Vision

Infrared Distance

30m

NVR

System

Operating system: Embedded LINUX OS

Image Code Control

Image code quality adjustable, Variable bitstream and constant bitstream optional

Dual Stream

Support

Recording

Recording mode: Manual, auto, dynamic detection, alarm trigger

Video interface

Video output: 1ch VGA and 1ch HDMI

Network

RJ45 10M/100M self-adaptive LAN port

USB Port

USB*2, USB 2.0 for Mouse

HDD	SATA HDD (not included), Max 4TB

Operation temperature

-10 to 55 Degree Celsius

Operation humidity

10-90 percent

Power

DC 12V 2.0A

Physical Environment

Environment

Outdoor, Indoor

Package Include

Package Contents

4 x Cameras
1 x Mounting Accessories
1 x NVR
1 x CD
1 x User Manual
4 x Power Chargers
1 x Power Charger

Package Weight

One Package Weight

4.35kgs / 9.59lb

One Package Size

37cm * 27cm * 21cm / 14.57inch * 10.63inch * 8.27inch

Qty per Carton

4

Carton Weight

18.00kgs / 39.68lb

Carton Size

56cm * 44cm * 38cm / 22.05inch * 17.32inch * 14.96inch

Loading Container

20GP: 284 cartons * 4 pcs = 1136 pcs
40HQ: 661 cartons * 4 pcs = 2644 pcs

Disponibile

Receives in 7 days.

MD80 3 in 1 Mini Digital VIDEO Camera Camcorder POCKET DV with 720*480 pixels, Viewing Angle: 60 Degree - Trustpick

Trustpick

MD80 3 in 1 Mini Digital VIDEO Camera Camcorder POCKET DV with 720*480 pixels, Viewing Angle: 60 Degree, MD80

€3,95 EUR

About the product
1. The Mini DV/DVR MD80 is mini digital video camera, smaller than a lighter, and just about as cheap!
2. It is very fashionable and wearable and matches all kinds of portable tools, making it a good little cam unit.
3. It records 720X480 video in AVI format at 30 frames per second this camcorder keeps away blur and distortions.
4. It can be set to stand-by for up to 250 hours until it is activated by a sound.
5. You can set it up in a room on audio-activated standby mode, where it will happily sit for nearly two weeks on a single battery charge, waiting for a noise to start it recording. It uses micro SD Card, which means you can store up to 32GB of footage on it, Powered by the Li-battery, and it plugs into your computer via USB (which also charges it).
6. The MD80 video camera captures videos with impeccable clarity and acute details. This video camera, with 60 degree view angle, lets you capture landscape videos on a wider angle.
7. With an extensive memory support, this camcorder offers ample of storage space.
8. The thumb size manual alloy housing of this video camera offers reliability and longevity.

Features
1. Mini DV Video Camera DVR Recorder Camcorder with Lithium Battery
2. New and high quality
3. Small size,easy to carry
4. Alloyed shell,much harder
5. Support sound control video recording
6. Support USB charging
7. Support Micro SD card (TF card)

Specification:

General

Programs

Generalplus

Pixel

1.3M

View Angle

70 Degree

Memory medium

Micro SD Card (TF Card)

Battery Capacity

230mAh

Consumption Current

3.7V / 120mA (Max)

Interface

USB 2.0

Operation System

Windows 98, Mac OS10.4

Formats

Video Format

AVI

Video Coding

Motion JPEG

Physical Environment

Minimum Illumination

1Lux(Min)

Store Temperature

-20 Celsius Degree to 80 Celsius Degree

Operation Temperature

-10 Celsius Degree to 50 Celsius Degree

Operation Humidity

15 - 85% RH

Package Include

Package Contents

1 x Mini DV
2 x Brackets
1 x Clip-On Adapter
1 x USB Cable
1 x Silicone Case
1 x User Manual
1 x CD Driver

Package Weight

One Package Weight

0.09kgs / 0.20lb

Qty per Carton

100

Carton Weight

11.00kgs / 24.25lb

Carton Size

50cm * 35cm * 30cm / 19.69inch * 13.78inch * 11.81inch

Loading Container

20GP: 507 cartons * 100 pcs = 50700 pcs
40HQ: 1179 cartons * 100 pcs = 117900 pcs

Disponibile

Receives in 7 days.

Menu principale

Drawer menu

Product comparison

Collection description

Menu principale

Drawer menu

MAXIMIZEBF

Explore Related Collections

Collection description
